Diagonal strut

• Details
• Info
• Opinions

Details

item description:

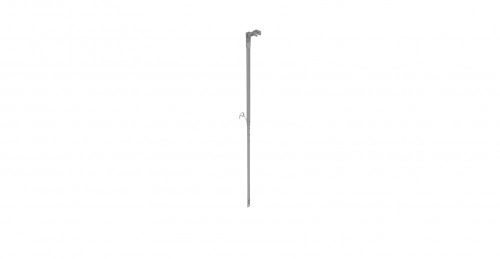

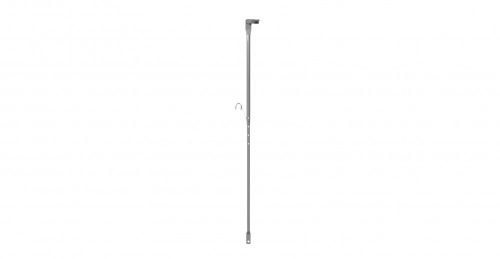

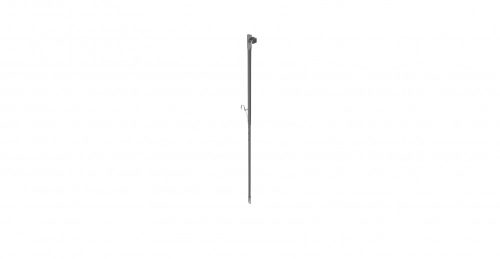

Diagonal strut Diagonal braces are used for
stiffening crank-operated or universal
scaffolding jacks. The hole of the brace at the
end of the inner tube is hung in the appropriate
construction at the top frame of the
crank-operated or universal scaffolding jack
and the bracket at the opposite end bolted to
the foot of the second crank-operated or
universal scaffolding jack. The connecting
bracket is part of this article. The complete
bracing assembly can be telescoped between
2.00 m and 2.60 m and is secured by captive
pin, galvanized
designated purpose:
For the application for work in building
construction
technical specifications:
weight: 6,00 kg/pc
material:
S235 JR
surface:
hot dipped galvanized acc. to DIN ISO 1461

Info

Kivitel:

Galvanizált

Brand:

Geostore

Weight:

5.23 kg/pcs
