item description:

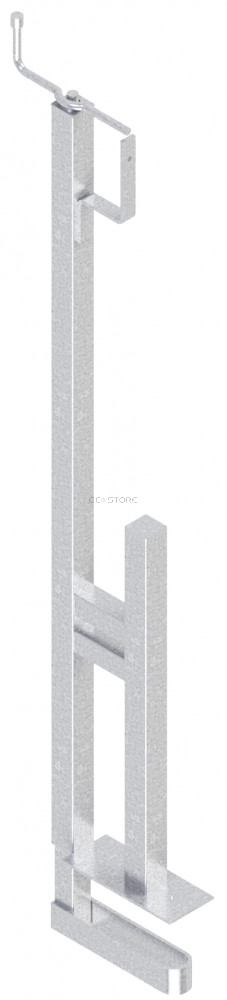

Guard rail clamp with crank as fall arrester
when working at a height. The clamp is
pressed against the ceiling by wedge produces
the required pressure and is fixed to the clamp
by a threaded rod and a nut. Suitable for
ceilings up to 40 cm thickness. The
mechanical parts are installed inside the guard
rail clamp for protection and long life. The
guard rail clamp can be fixed easily by crank at
a comfortable level. For arresting fall, a plank
can be installed in the hook provided. The
plank can be fixed in a hole in the hooks, in
which a nail can be driven to fix the plank.,
galvanized
designated purpose:
For the application for work in building
construction
technical specifications:
weight: 7,00 kg/pc
material:
S235 JR
surface:
hot dipped galvanized acc. to DIN ISO 1461
